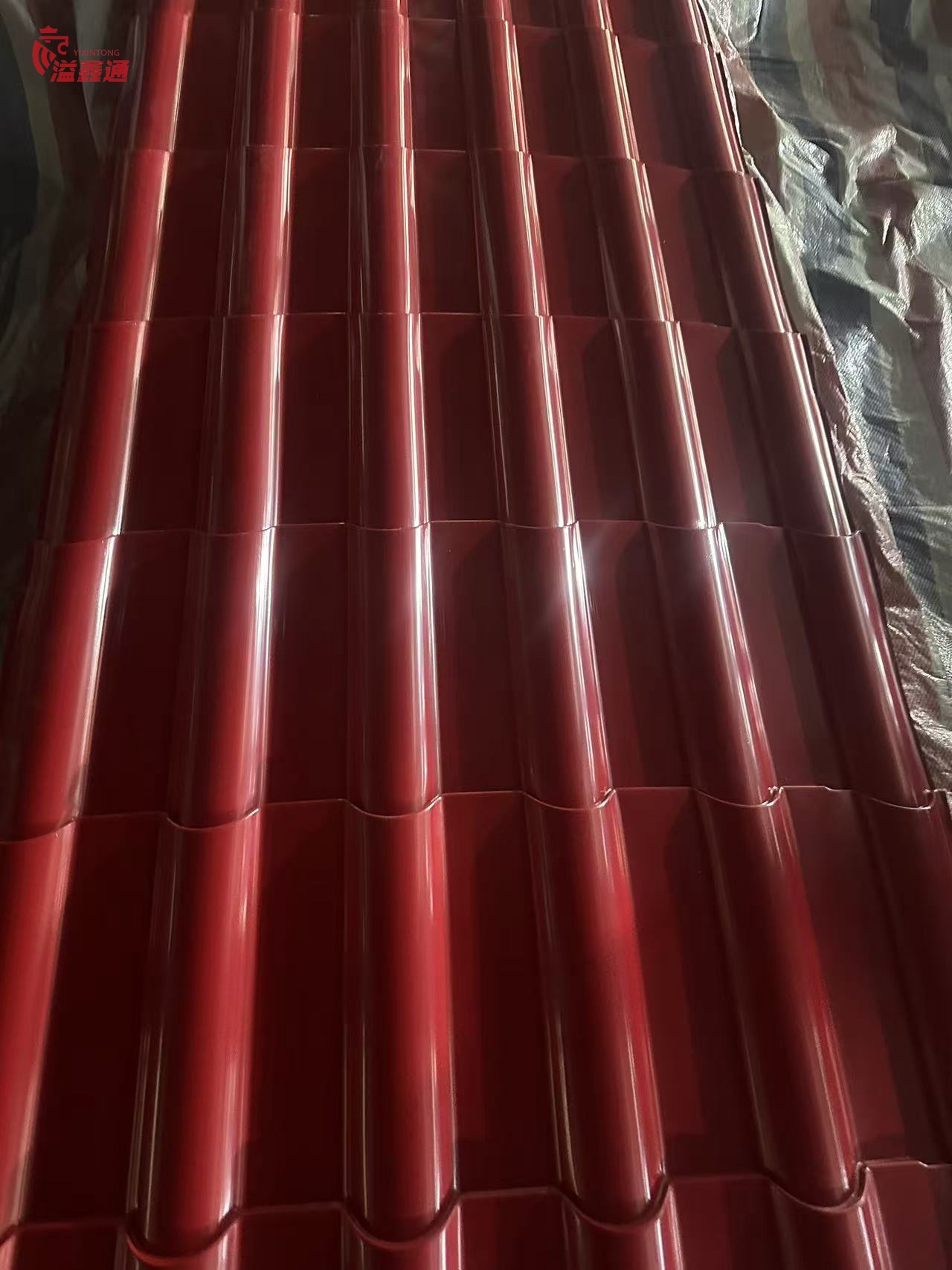

Aluminum Corrugated Sheet / Aluminum Roofing Sheet
Aluminum Corrugated Sheet, also known as Aluminum Roofing Sheet or Profiled Aluminum Sheet, is a corrugated or trapezoidal grooved roofing/wall panel product formed by roll-forming high-quality aluminum sheets or coils through cold-bending processes. The corrugated structure significantly improves the section modulus and load-bearing capacity while retaining the excellent properties of aluminum such as light weight, high strength, and corrosion resistance. With outstanding advantages including aesthetic appearance, easy installation, long service life, and 100% recyclability, aluminum corrugated sheets are ideal roofing and cladding materials for industrial plants, civil buildings, temporary facilities, and more.
I. Product Classification
Classification | Type | Description |
By Substrate Alloy | 1xxx Pure Aluminum Sheet (1060, 1100) | High purity, good plasticity, cost-effective; suitable for general industrial and civil buildings |
| 3xxx Al-Mn Alloy Sheet (3003, 3004) | Good anti-rust performance, moderate strength; most commonly used grade for roofing and curtain walls |
| 5xxx Al-Mg Alloy Sheet (5052) | High strength, excellent seawater corrosion resistance; suitable for coastal and highly corrosive environments |
By Surface Treatment | Mill Finish (Natural) | Directly roll-formed, natural aluminum surface (as-rolled or oxidized) |
| Color Coated | Roll-formed from pre-coated substrate; rich colors, strong decorative effect, good weather resistance |
| Film-Laminated | PE protective film applied to prevent scratches during installation |
By Corrugation Shape | Corrugated (Arc Type) | Arc-shaped waves, smooth drainage, attractive appearance; most commonly used type |
| Trapezoidal (T-Shaped) | Trapezoidal waves, strong load-bearing capacity; suitable for long-span roofing |
| Angle-Drive Type | Angle-shaped corrugation; high strength, good wind resistance; suitable for high-wind areas |
By Wave Height | Low Wave (wave height ≤ 20mm) | Smaller wave height, less material consumption; suitable for light-load roofing and decoration |
| Medium Wave (wave height 20mm – 35mm) | Balanced performance; most commonly used wave height range |
| High Wave (wave height ≥ 35mm) | Large wave height, strong load-bearing capacity; suitable for heavy-load and long-span roofing |
II. Product Specifications
Item | Parameters |
Substrate Alloy Grades | 1xxx (1060, 1100), 3xxx (3003, 3004), 5xxx (5052), etc. |
Substrate Thickness | 0.30mm – 1.5mm (customizable) |
Effective Width | 600mm – 1200mm (varies by profile type) |
Wave Height | 10mm – 50mm (customizable per profile and customer requirements) |
Wave Pitch | 100mm – 250mm (customizable per profile and customer requirements) |
Length | Custom cut per customer requirements (typically 500mm – 12000mm) |
Surface Treatment | Mill finish, color coated, film-laminated (optional) |
Color Coating Options | Available per RAL color chart or customer samples |
Applicable Standards | GB/T 12754 / GB/T 6891 / ASTM B209 |
III. Common Profile Type Parameters
Profile Type | Wave Height (mm) | Wave Pitch (mm) | Effective Width (mm) | Applicable Thickness (mm) | Features | Recommended Applications |
Arc Corrugated | 20 – 35 | 130 – 200 | 700 – 1100 | 0.40 – 1.2 | Smooth drainage, attractive appearance, most commonly used | Industrial plants, civil buildings, temporary facilities |
Trapezoidal | 25 – 50 | 200 – 250 | 600 – 1000 | 0.50 – 1.5 | Strong load-bearing, good bending resistance | Large-span roofing, warehouses, logistics centers |
Angle-Drive | 40 – 60 | 200 – 230 | 700 – 900 | 0.50 – 1.5 | Strong wind uplift resistance, secure connections | High-wind areas, high-rise building roofing |
Mini Corrugated | 10 – 15 | 100 – 120 | 800 – 1000 | 0.30 – 0.60 | Low profile, exquisite appearance | Decorative walls, interior partitions, curtain wall linings |
Medium Wave | 25 – 35 | 150 – 200 | 800 – 1100 | 0.40 – 1.0 | Balanced performance | General industrial and civil buildings |
IV. Product Features
Feature | Description |
Lightweight & High Strength | Aluminum density is only 1/3 of steel; the corrugated structure significantly increases section modulus, providing high strength with low weight |
Good Corrosion Resistance | Natural oxide film provides good protection; color coating further enhances weatherability, service life up to 20+ years |
Aesthetic Appearance | Smooth corrugation, rich colors (color-coated), modern look that enhances architectural aesthetics |
Excellent Drainage | Grooved design allows smooth water flow, no water accumulation, suitable for various climate conditions |
Easy Installation | Lightweight for easy handling; can be quickly fixed with self-tapping screws or rivets; high construction efficiency |
Good Fire Resistance | Aluminum is non-combustible; fire resistance rating Class A |
Wind & Seismic Resistance | Good flexibility, secure connections, strong wind uplift resistance; suitable for earthquake-prone areas |
Low / No Maintenance | Color-coated sheets have good weather resistance and fade resistance; no regular painting required; mill-finish sheets are virtually maintenance-free |
100% Recyclable | Fully recyclable, meeting green building and sustainability requirements |
Wide Service Temperature Range | Usable from -80°C to 600°C, suitable for various extreme climates |
V. Application Fields
Application Field | Specific Uses |
Industrial Buildings | Industrial plants, warehouses, logistics centers, processing workshops, machinery factory roofing and walls |
Civil Buildings | Villa roofing, residential roofs, sunrooms, canopies, corridor ceilings |
Public Facilities | Stadiums, exhibition centers, schools, hospitals, railway stations, airport terminal roofing |
Agricultural Facilities | Greenhouses, livestock shed roofs, agricultural product warehouses, equipment shelters |
Temporary Structures | Prefabricated houses, site temporary sheds, emergency shelters, construction hoardings |
Curtain Wall Decoration | Exterior wall decoration, landscape walls, interior partition decoration |
Anti-Corrosion Projects | Chemical plants, coastal buildings, wastewater treatment plants and other corrosive environment enclosures |
Energy-Efficient Retrofitting | Old building roof renovation, insulation layer addition for energy-saving upgrades |
VI. Aluminum Sheet vs. Traditional Building Materials Comparison
Comparison | Aluminum Sheet | Color-Coated Steel Sheet | Asbestos Sheet | Clay Tile |
Density (g/cm³) | 2.71 | 7.85 | 2.5 – 3.0 | 2.0 – 2.2 |
Weight (kg/m²) | 3 – 8 | 10 – 20 | 15 – 25 | 40 – 60 |
Corrosion Resistance | Excellent | Average (rusts after coating damage) | Good | Good |
Service Life | 20 – 50 years | 10 – 20 years | 5 – 10 years | 30+ years |
Aesthetic Quality | Excellent (metallic/color finish) | Average | Poor | Good |
Installation Difficulty | Easy | Easy | Relatively complex | Complex |
Fire Rating | Class A (non-combustible) | Class A (non-combustible) | Class A (non-combustible) | Class A (non-combustible) |
Recyclability | 100% recyclable | Recyclable | Contains asbestos fibers, health risk | Non-recyclable |
Maintenance Cost | Low | Medium (periodic rust protection needed) | Low | Low |
Temperature Range | -80°C – 600°C | -40°C – 400°C | 0°C – 200°C | -20°C – 300°C |
VII. Aluminum Sheet Installation Guidelines
Installation Aspect | Key Points |
Purlin Spacing | Determined by sheet thickness and wave height; typically 600mm – 1500mm; follow design drawings |
Lap Length | Longitudinal lap ≥ 200mm; transverse lap ≥ one wave pitch to ensure watertight sealing |
Fixing Method | Fix with stainless steel self-tapping screws or galvanized rivets on purlins; screw heads with waterproof sealing washers |
Fixing Spacing | Fix at wave crests; spacing 300mm – 500mm |
Cutting | Use electric saws or nibblers; cut edges must be treated with anti-rust paint |
Waterproofing | Apply waterproof tape or sealant at lap joints to prevent leakage |
Safety | Installers must wear safety harnesses; exercise caution when surfaces are wet |
Protective Film Removal | Remove protective film promptly after installation to prevent sun aging and difficult removal |
VIII. Quality Control
Test Item | Standard | Description |
Substrate Chemical Composition | GB/T 3190 / ASTM B209 | Direct-reading spectrometer analysis ensuring alloy elements meet standards |
Substrate Thickness | GB/T 3880 | Thickness tolerance meets standard requirements |
Corrugation Dimensions | GB/T 12754 | Wave height, wave pitch, effective width conform to drawing requirements |
Flatness | In-house standard | Flat surface after forming, no warping, twisting, or wrinkling |
Coating Quality (Color Coated) | GB/T 12754 | No bubbles, peeling, cracking; color difference controlled within △E≤1.5 |
Coating Thickness (Color Coated) | GB/T 13448 | Topcoat ≥ 15μm, back coat ≥ 5μm |
Forming Precision | In-house standard | Continuous and uniform corrugation; no fractures or obvious indentations |
Cutting Quality | In-house standard | Neat cut edges, no burrs, no cracks |
IX. Packaging Method
Packaging Step | Description |
Bundling | Same-specification sheets bundled into small packs with plastic strapping |
Interlayer Protection | Kraft paper or PE film between layers to prevent friction scratches |
Pallet Packaging | Multiple bundles stacked on wooden or steel pallets and secured together |
Moisture-Proof Covering | Entire package wrapped with moisture-proof plastic film to prevent moisture during transport and storage |
Steel Strapping | Galvanized steel strips in cross-bundling to ensure package remains secure and tight |
Edge Protection | Paper/plastic edge protectors at corners to prevent impact damage |
Labeling | Product label attached (alloy grade, specification, profile type, quantity, weight, production date, etc.) |
Short/Long Distance Transport | Open trucks acceptable for short distances; waterproof covers required for long-distance and sea transport |
X. Why Choose Yixintong's Aluminum Corrugated Sheet?
Advantage | Description |
Factory Direct | Integrated production and sales, no intermediaries, more competitive pricing |
Sufficient Stock | Four factory warehouses; regular specifications and profile types kept in stock for immediate shipment |
Complete Profile Range | Arc, trapezoidal, angle-drive and other profile types; multiple grades, thicknesses, and colors available |
Custom Cutting | Available for any length cutting per customer requirements, reducing on-site cutting waste and labor costs |
Quality Substrate | Self-produced high-quality aluminum coils as substrate; quality controlled from the source |
Strong Production Capacity | Annual comprehensive capacity over 3 million tons, ensuring reliable delivery for large orders |
Stable Quality | Full-process quality management from casting to roll-forming with traceability at every stage |
Rich Export Experience | Products exported to many countries and regions, trusted by overseas customers |
